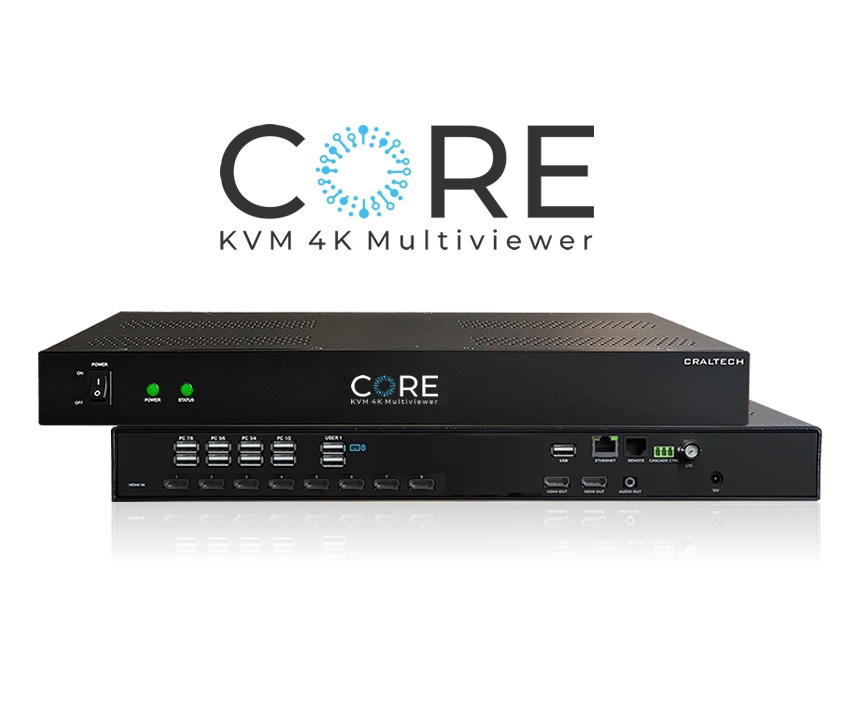

4K Switcher multiview KVM

Take your workstation to the next level


Operate up to 8 computers with only one set of mouse and keyboard with full free screen configuration and make your workspace more efficient and ergonomic. Switching between computers is done directly moving the mouse surfing between the sources displayed on screen.

Fast and easy custom layout design, with a Drag&Drop system. Just surf through your computers and move and resize the windows. Using the SMART Desktop ToolBar displayed on screen, store and upload layouts just with one click.



Increase your desktop with Dual 4K output and get full control of your computers


KVM Diagram

Instanly take control of all your computers

Moving the mouse between windows, just select a target computer and get full control with just one click.

Compatible with Stream Deck

Use Stream Deck to switch Layouts, Sources and direct functions, or use a keyboard combination for switching functions.


Up to eight Computers

Up to 8 computers can easy be visualized and operated in a custom layout.

Hardware based KVM

Hardware design based in FPGA. Not software installation required



Features Multiviewers 4craft

Build Hybrid Solutions combined with IP sources in Control Room applications


4K Modular Multiviewer draw

Flexible and Easy to use, 4Kcore can be used in a wide range of applications



Uses Screen bridge KVM MULTIVIEWER Switcher Videowall

Industry and Control Rooms

- Quality Control
- Engineering Departments
- R&D Departments
-Control Rooms

Uses Screen bridge KVM MULTIVIEWER Switcher Videowall

Stock and Banking Market

- Banking control rooms and offices
- Stock Market & Brokers control rooms
- Cryptocurrency Servers and control

Uses Screen bridge KVM MULTIVIEWER Switcher Videowall

Engineering & Design

- Engineering Departemnts
- Software and games design
- Design & Modeling Departments

Uses Screen bridge KVM MULTIVIEWER Switcher Videowall

Live Stream and e-Sports

- Live Stream Set Up
- e-Sportes
- Gaming & Software Dessign

Uses Screen bridge KVM MULTIVIEWER Switcher Videowall

Corporate & Presentations

- Presentations & Conferencing
- Events
- Training facilities

Uses Screen bridge KVM MULTIVIEWER Switcher Videowall

Broadcast

- Control Rooms
- KVM Remote control optimization

Uses Screen bridge KVM MULTIVIEWER Switcher Videowall

Government

- Courtrooms
- Mission critical environments
- Control rooms

Uses Screen bridge KVM MULTIVIEWER Switcher Videowall

Rental, Staging & Live Events

- Conferences & Corporate events
- Multi-screen live events
- Casinos
- Stadiums


Connections


VIDEO INPUTS

- 8 HDMI

VIDEO OUTPUTS

- 2 HDMI 4K UHD

KVM

- 8 x KVM outputs
- 2 x USB Inputs for Mouse and keyboard

Compatibility

All kind of OS compatible

Updates

Through USB 2.0 high speed connection or Ethernet.

Configuration

Through Ethernet control free software.


Compatible format


HDMI FORMATS

- 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
- 1080i (60 / 59.94 / 50)
- 720p (60 / 59.94 / 50)
- Multiple PC resolutions


Control


External control

Full control of all parameters through ethernet using our free software or any other SNMP agent.


Power requirements


Power supply

12V External power supply
IEC Cable (included) for 100-240 V.

Power Fail protection

Configuration will preserve and restore inmediatly when power back on the equipment.

Power Consumption

24 W


Physical Specifications

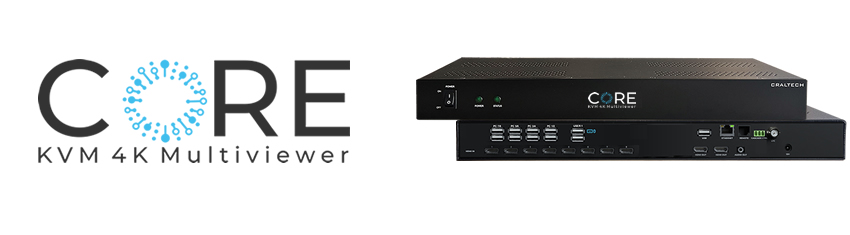

4Kcore dimensions


Environmental Specifications


Operating Temperature

0 °C a 40 °C (32 °F a 104 °F)

Storage Temperature

–20 °C a 45 °C (–4 °F a 113 °F)

Relative Humidity

0 % a 90 % without condensation

Warranty


2 year warranty on the electronics. Limited Manufacturer warranty.


Ordering reference

- Core (8 x HDMI inputs, 2 x HDMI 4K Outputs and 8 KVM outputs. )
